Modular design, seamless upgrade, up to 12 inch wafer, high precise screw drive structure, linear movement, quick and fine-tuning lift function for chuck stage, capable for Wafer test, PCB/IC test, RF test, high voltage and current test.

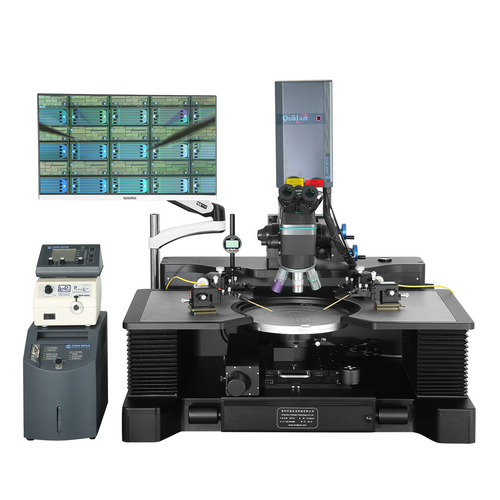

CH-12 |8~12" large-sized comprehensive probe station
|
FEATURES / APPLICATION
◆ Up to 12 inch wafer
◆ High precise screw drive structure, linear movement
◆ Compatible with multiple types of microscope
|
 |
Specifications
Chuck stage
Model
CH-12
Chuck size
8"/12" upon request
Rotation angle
360°with angle locking, fine-tuning for 15° with 0.1μm resolution
X-Y travel range
8"*8"/12"*12" upon request
X-Y travel resolution
10μm/1μm
Sample holding mode
Vacuum adsorption
Chuck capacity
U shape, up to 10 micropositioners
Stage lift ability
6mm-quick lift /25mm fine tuning
Electrical design
Chuck back is electrical floating, can be used as gate electrode
Dimension
840(L)*600(W)*700mmH/950(L)*700(W)*700mm(H)
Weight
100KG/150KG
Stereo Microscope
|
Model |
Single tube microscope /stereo microscope /metalloscope |
|
Magnification |
16X-200X/20X-4000X |
|
Travel range |
X-Y up to 2"*2", vertical to 50.8mm |
|
CCD Camera |
CCD Camera |
|
CCD Pixel |
200W Pixel / 500W Pixel /1200W Pixel |
Micropositioner
|
X-Y-Z Moving range |
12mm-12mm-12mm |
|
Resolution |
10um / 2um / 0.7um/0.5um |
|
Adsorption mode |
Magnetic/vacuum |
|
Cable |
Coaxial / triaxial |
|
Leakage current |
10pA/100fA/10fA upon request |
|
Cable connector |
Banana head /Crocodile clip /Coaxial /Triaxial |
|
Probe tip diameter |
0.2um/1um/2um/5um/10um/20um upon request |
|
Probe metal |
Tungsten/Beryllium copper upon request |
Optional accessories
|
Hot chuck |
|
Display screen |
|
Laser system |
|
RF testing accessoriess |
|
Shield box |
|
Probe card holder |
|
Optical platform |
|
Gold-plated chuck |
|
High voltage test accessories |
Specifications and designs are subject to change without notice.
|
