Test instrument
Iron Voltage Electrical Analyzer TF Analyzer 3000
TF ANALYZER 3000E is a highly scalable high-speed modular ferroelectric voltage analyzer. It has all the basic characteristics of ferroelectric, piezoelectric, and pyroelectric materials. It can be used with laser interferometer and SPM scanning probe microscope. The combined use of micro-displacement sensors can be widely used in fields such as various ferroelectric / piezoelectric / pyroelectric thin films, thick films, bulk materials and electronic ceramics, ferroelectric sensors / actuators / memory, etc.
  • Parameter
  • Download

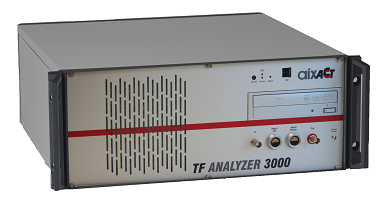

TF Analyzer 3000


TF ANALYZER 3000E is a highly scalable high-speed modular ferroelectric voltage analyzer. It has all the basic characteristics of ferroelectric, piezoelectric, and pyroelectric materials. It can be used with laser interferometers and SPM scanning probe microscopes. The combined use of micro-displacement sensors can be widely used in fields such as various ferroelectric / piezoelectric / pyroelectric thin films, thick films, bulk materials and electronic ceramics, ferroelectric sensors / actuators / memory, etc.

The modular design of TF Analyzer 3000 has excellent scalability.
  • FE module-ferroelectric standard test;
  • MR module-magnetoresistive and ferromagnetic material testing;
  • RX module-relaxation current test;
  • DR module-self-discharge test.

Test basic unit: including built-in complete special computer host and test circuit, operational amplifier, data processing unit, etc., Windows 7 operating system, ferroelectric analyzer special test software, etc.

FE module standard test function:
Dynamic Hysteresis dynamic hysteresis loop test frequency (enhanced FE module 250kHz, high-speed enhanced FE module 1MHz);
Static Hysterestic static hysteresis loop test;
PUND pulse test;
Fatigue fatigue test;
Retention
Imprint
Leakage current leakage current test;
Thermo Measurement variable temperature test function.

Optional test function of FE module:
C-V curve capacitance-voltage curve;
Piezo Measurement piezoelectric performance test;
Pyroelectric Measurement pyroelectric performance test;
In-situ Compensation
DLCC dynamic leakage current compensation function;
Impedance Measurement impedance test (only for high-speed enhanced).

Technical Description:
Voltage range: +/- 25 V (optional additional high-voltage amplifier can be expanded to +/- 10KV);
Hysteresis frequency: Enhanced FE module 250kHz, high-speed enhanced FE module 1MHz;
Minimum pulse width: 50ns;
Minimum rise time: 10ns;
Maximum fatigue frequency: 16MHz;
Current amplification range: 1pA ~ 1A;
Maximum load capacitance: 1nF;
Peak output current: +/- 1 A.

Expandable parts:
High voltage amplifier, laser interferometer, AFM, temperature controller, film probe hot and cold stage, variable temperature block sample box, block variable temperature furnace, film e31 test platform, superconducting magnet, PPMS, impedance analyzer, etc.


The MR module is used to study magnetoresistance and ferrous materials.
This module provides continuous current excitation and testing, and the voltage drop on the sample passes the high-precision four-point test.

The RX module is used to study the polarization and depolarization currents of dielectrics and ferroelectric materials, that is, the current response after applying a voltage step.
This test can separate the relaxation current and leakage current of the material, and can record the polarization response current and depolarization response current.

The DR module is used to study the self-leakage of dielectric materials.
Since the test conditions are very close to the actual situation, it is easy to test the suitability of DRAM materials in this way.

For industrial applications, TF Analyzer 3000 provides 256 channels for automatic testing, greatly expanding the testing capabilities of the instrument.

All the above modules can be selected independently or in any combination according to your testing needs and research direction.
