RF Probe
Model 140(90 to 140 GHz / WR-8 waveguide input)
Model 140(90 to 140 GHz / WR-8 waveguide input)
  • Parameter
  • Download


High Performance Microwave Probes



Model 140

Features


  • Durable
  • 90 to 140 GHz
  • Patented Coaxial Design
  • Individually Spring-loaded Contacts
  • Bias-T Option Available

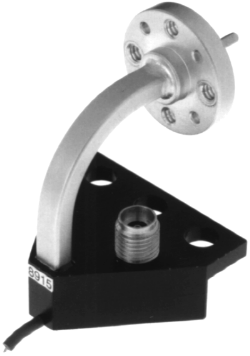

  • FIGURE 1

    The PICOPROBE® MODEL 140, a high performance microwave probe which incorporates a WR-8 waveguide with our patented coaxial design techniques, has inherent low loss and low dispersion characteristics. Like all of our Picoprobe® microwave probes, the Model 140 features: individually spring loaded Beryllium-Copper tips which provide reliable contacts even when probing non-planar structures; direct viewing of probe tips for accurate positioning; and can be designed to almost any pitch and footprint. Smaller pitches and Ground-Signal-Ground footprints are recommended for optimum performance. Please contact our office for additional information regarding the performance specifications of the Model 140 Picoprobe®.



    Left: Typical uncalibrated performance of a Model 140-GSG-100-BT while touching a 50 ohm load.


    Left: Typical insertion loss of a Model 140-GSG-100-BT.
    FIGURE 2

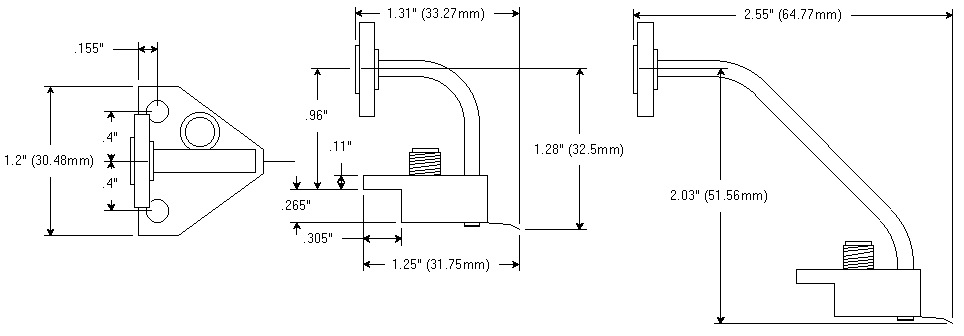

    Model 140-BT Waveguide Dimensions

    Model 140-BT-M Waveguide Dimensions

    FIGURE 3
